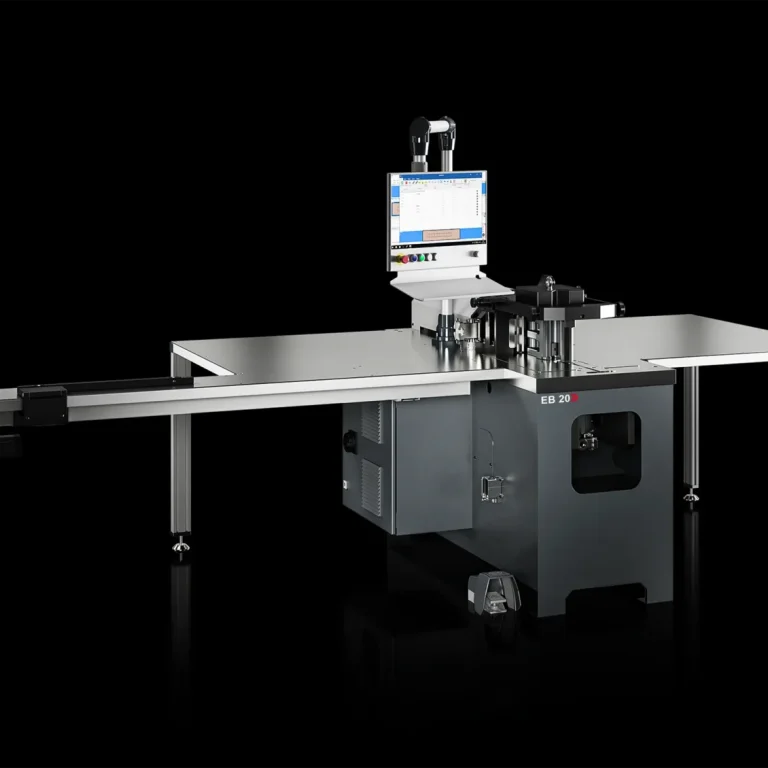

Bending machine EB 20 standard line
EHRT’s standard bending machine is distinguished by its extreme robustness and simple handling. The machine is modularly and flexibly structured, so that each machine can be individually adapted to the customer’s needs.
EHRT bending machines can perform a multitude of bending modes. Offset bending, flat bending, edge bending, torsion bending, closed shapes and U-bends are some examples. The hydraulic cylinders of the bending machine is fitted with a force of 222 kN. This machine offer outstanding bending accuracy of 0.2°.
Easy tool change
A special plug-in system makes tool changing very user-friendly on the machine. This guarantees very fast setup times and yet robust and precise bending tools.
Beckhoff’s PLC machine control enables machine maintenance and software updates via remote access.
In combination with the EHRT bending tools, the bending machines offer extremely high repeat accuracy, ensuring that every part is bent identically. In combination with the software solutions, this results in simple but precise machine handling.

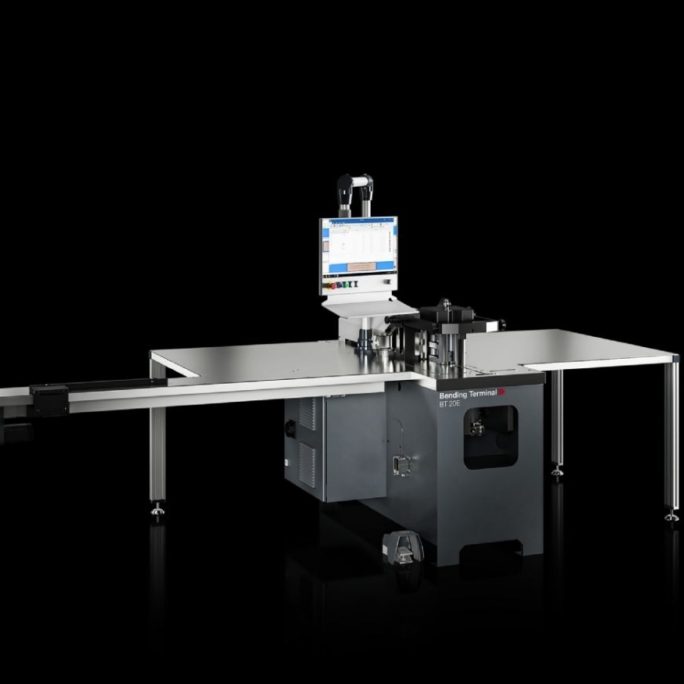

Bending Terminal BT 20E –
electric bending machine
The BT 20E bending terminal is an electrically operated solution for the precise bending of copper and aluminum busbars. The machine significantly simplifies the bending process while offering a high degree of accuracy.
Your advantages at a glance
- Significant time savings compared to manual bending processes
- Short set-up times due to stable plug-in system for the bending tools
- Energy-efficient, electrically powered drive with low consumption
- Quiet operation due to low-noise electric drive
- Integration of bending data from DXF files and from systems such as EPLAN, RiPower Optimation, Metamation and WiCAM
- Minimization of errors during design changes through networked data transmission
Technical highlights
- Support for different bending types such as multi-stack, flat, edge, U-shaped and closed bending
- Comprehensive programming options for workpieces and shuffling production orders
- Automatic side stop for precise positioning
- Bending force up to 230 kN
- Electronic angle measuring system with springback compensation
- Networking with other machines via a shared database
Further advantages
- Process-reliable bending, as time-consuming data transfers between the machines are eliminated
- Enhanced efficiency with low-maintenance electric drive
- Consistent performance with changing influences such as load and ambient temperature
- High precision with a bending accuracy of ± 0.2°
- Particularly quick and easy tool change due to the plug-in system
- Convenient programming options both directly at the machine and from the workstation

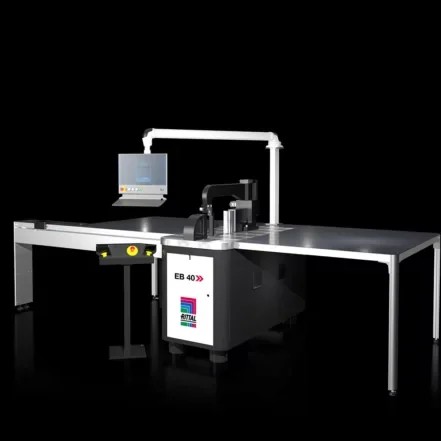

Bending machine EB 40 by EHRT
EHRT’s standard bending machine EB 40 is distinguished by its extreme robustness and simple handling. The machine is modularly and flexibly structured, so that each machine can be individually adapted to the customer’s needs.
EHRT bending machines can perform a multitude of bending modes. Offset bending, flat bending, edge bending, torsion bending, closed shapes and U-bends are some examples. The hydraulic cylinder of the bending machine is fitted with a force of 344 kN. The machine offers outstanding bending accuracy of 0.2°.
Your advantages at a glance
Easy tool change
A special plug-in system makes tool changing very user-friendly on the machine. This guarantees very fast setup times and yet robust and precise bending tools.
Beckhoff’s PLC machine control enables machine maintenance and software updates via remote access.
In combination with the EHRT bending tools, the bending machines offer extremely high repeat accuracy, ensuring that every part is bent identically. In combination with the software solutions, this results in simple but precise machine handling.
Bending machine
EB 40 professional by EHRT
The EB40 Professional E is the machine of the Professional series of bending machines. It is distinguished by a design which is even more robust than that of the Standard series machines, yet compact.
A variety of bending types can be set up with EHRT bending machines. Offset bending, flat bending, edge bending, torsion bending, closed shapes, and U-bends are some examples. The machines offer an outstanding bending accuracy of 0.2°. With the EB40 Professional E, side lengths up to 2000mm can be bent with ease. The tool change on the machines is carried out through a user-friendly plug-in system. This guarantees very fast setup times, yet robust and precise bending tools.
Your advantages at a glance
Save energy with electrical servodrive
The “E” in the name stands for the electric drive of the machine, which enables energy savings of up to 70 %. Due to the absence of a hydraulic unit, which is no longer needed, the machine is significantly more quiet and requires little maintenance. The CNC-controlled side stop is equipped as standard. The machine’s larger tables allow the operator
greater degrees of freedom in the bending process, especially with more complex workpieces. Furthermore, the machine is also suitable for use in companies conducting threeshift operation.
The PLC machine controller by Beckhoff enables machine maintenance and software updates via remote access.
In combination with EHRT bending tools, the bending machines offer an extremely high degree of repeatability so that each part is bent virtually identically. In combination with the software solutions, this results in simple but precise machine handling.
